800kVA Open-type Diesel Generator with SDEC Engine | Hosem Power

  • 1
  • 2

Brand Name : Hosem

Model Number : A-SH880

Certification : CE/ ISO

Place of Origin : China

MOQ : 1 SET

Payment Terms : L/C, T/T

Supply Ability : 1000 Set / Months

Delivery Time : 30 days

Packaging Details : Plastic films or ply-wood

Model : A-SH880

Alternator Brand : Hosem

Engine Brand : SDEC

Rate Power : 640kW / 800kVA

Max Power : 704kW / 880kVA

Rated Voltage : 230/400V

Output Type : Three Phase

Frequency : 50Hz

Contact Now

800kVA Open-type Diesel Generator with SDEC Engine | Hosem Power

The 800kVA SDEC Diesel Generator (Model A-SH880) is built to deliver stable, fuel-efficient, and reliable power for large-scale industrial, commercial, and backup applications. This generator ensures 640kW prime power and 704kW standby power, which is a trusted solution for factories, data centers, hospitals, and construction projects requiring uninterrupted electricity supply.

Key Features

  • High Performance Power – Provides 800kVA / 640kW prime power and 880kVA / 704kW standby power, ensuring stable electricity output.
  • Advanced Cooling – Turbocharged, aftercooled 6-cylinder engine with high-capacity radiator, designed for heavy-duty performance.
  • Smart Control Panel – Equipped with a Deepsea DSE7320 controller with AMF (Automatic Mains Failure), full alarm protection, and optional ATS for seamless power transfer.
  • Flexible Customization – Choice of alternators including Hosem, Stamford, Leroy Somer, Marathon, and Mecc Alte to meet diverse customer needs.

Specification of 800kVA SDEC Diesel Generator Set

Generator Set Specification
Model A-SH880
Max. Power kVA 880.0
kW 704.0
Rate Power kVA 800.0
kW 640.0
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 1154.7
Dimension For Open-type Genset mm 4800 X 1800 X 2150
Weight For Open-type Genset kg 5750
Dimension For Soundproof Genset mm 5500 X 2200 X 2450
Weight For Soundproof Generator kg 8150
Noise Level at 7 Meters dBA 80
Fuel Tank Capacity Liters 700
Battery Two of Free Maintenance Battery

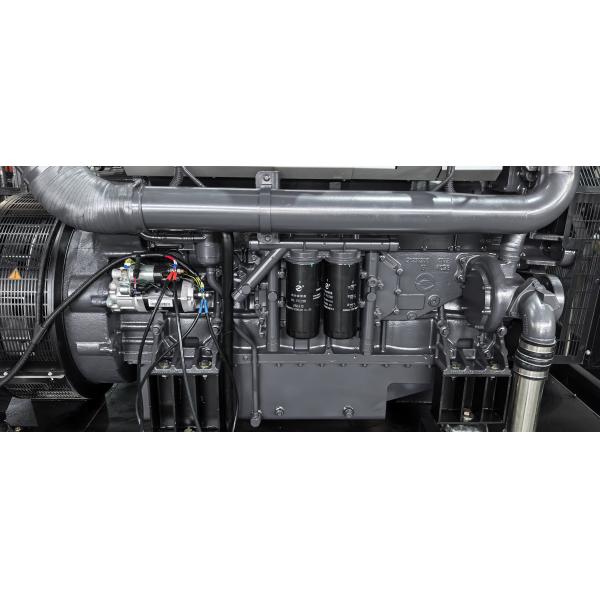

Engine Specification
Engine Manufacturer Shanghai Diesel Engine Co., Ltd.
Engine Brand SDEC
Engine Model 6KTAA25-G32
No. of Cylinder 6 Cylinder in line
Aspiration Turbocharged and Air to Air Aftercooled
Governor Electric
Engine Max. Output Power kW 754
Displacement L 25.180
Starting Voltage V 24
Bore mm 175
Stroke mm 185
Lubrication Oil Capacity L 70
Compression Ratio 14.5 : 1
Intake Air Flow M3/Min 53.5
Fuel Consumption at 100% Load L/H 163.0

800kVA Open-type Diesel Generator with SDEC Engine | Hosem Power

Alternator Specification
Alternator Manufacturer Fuzhou Hosem Power Co., Ltd.
Alternator Model ASF404B
Alternator Brand Hosem
Rate Output kVA 750
Frequency Hz 50Hz
Current A 1082.6
Insulation Class H
Voltage Regulation MX341
Protection Grade IP23
Working Temperature without Output Decrease ≤1000m
Phase 3 Phase
Temperature Rise 125 Degree Celsius
Alternator for optional Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

800kVA Open-type Diesel Generator with SDEC Engine | Hosem Power

Control Panel Specification
Controller Brand Deepsea
Controller Model DSE7320
Breaker Brand Delixi
Breaker Capacity A 1250
Battery Charger Smartgen Model BAC06A
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
Mains Monitor Supply with AMF Function
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

800kVA Open-type Diesel Generator with SDEC Engine | Hosem Power

Applications

  • The 800kVA SDEC Diesel Generator is widely used across industries where reliable power is critical:
  • Industrial Power Supply – Large factories, workshops, and logistics hubs
  • Commercial Facilities – Data centers, shopping malls, hotels, office buildings
  • Healthcare – Hospitals and medical centers requiring 24/7 uninterrupted power
  • Construction Sites – Heavy-duty projects and remote job sites without grid power
  • Backup Power – Residential communities, campuses, and emergency power systems

Why Choose Hosem?

Hosem generators deliver reliable performance, durability, and efficiency for standby, prime, and continuous power needs. With compact design, easy maintenance, and a wide range of customization options like soundproof enclosures and mobile trailers, Hosem provides flexible power solutions you can trust.
